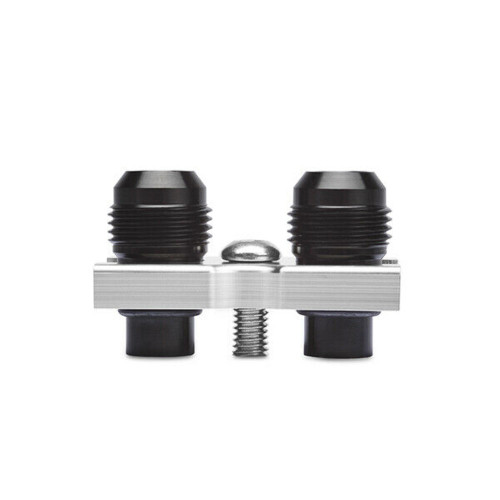

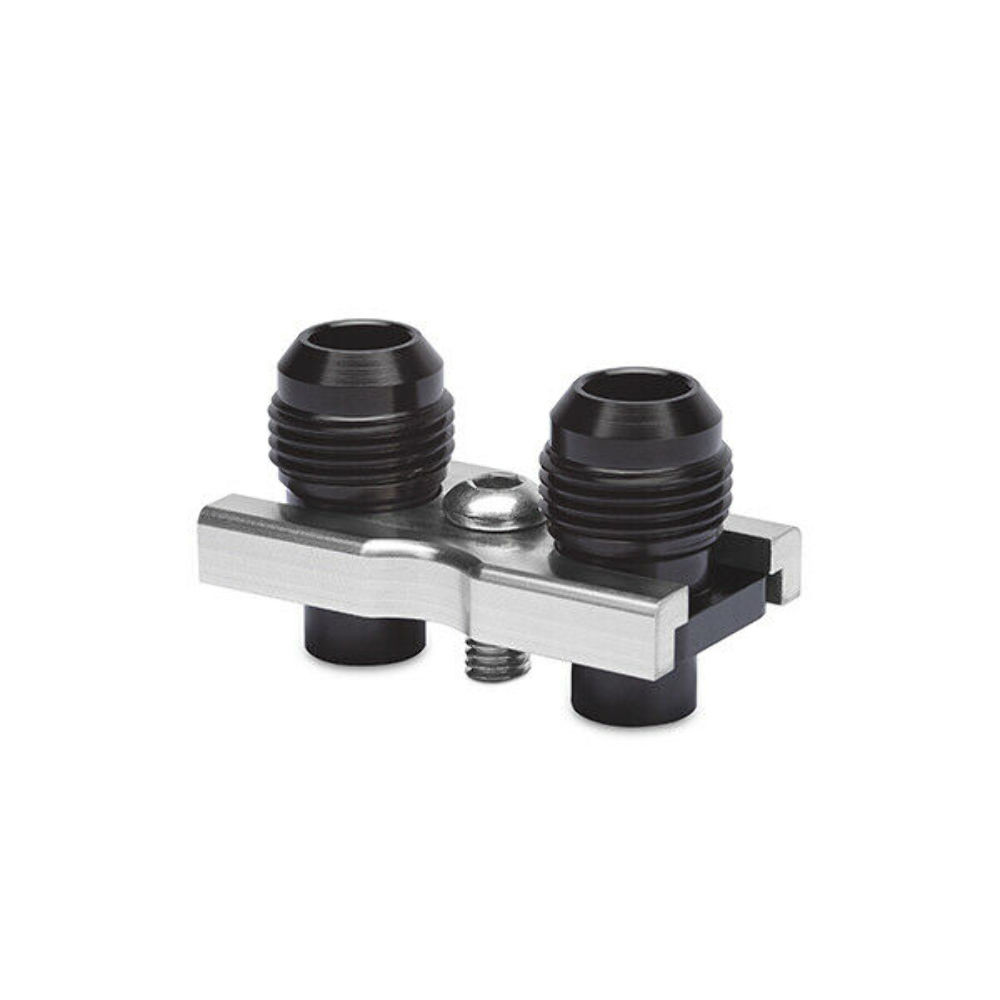

Mishimoto Oil Line Fitting Kit for BMW E36 / E46 / E90 - MMOCF-BMW

Product Description

Install a custom oil cooler on your street or track BMW with help from the Mishimoto Oil Line Fitting Kit! This kit has 100% CNC-machined components, including the 6061 aluminum oil line fittings and the 303 stainless steel tie-down plate. This adapter kit is applicable for BMW E36 (Euro oil-housing equipped), E46, and E90 vehicles, and allows for the use of -10AN fittings to route oil to a custom oil cooler setup. This is an ideal upgrade for drivers seeking additional cooling for track environments or for those who would like additional engine bay space for an oil accumulator or supercharger setup. Included in this kit are two stock BMW O-rings for leak-free installation. Pair this fitting kit with some Mishimoto stainless steel oil lines and one of our stacked-plate oil coolers to create a complete cooling setup for your BMW. As with all our products, the Mishimoto BMW Oil Line Fitting Kit includes our Lifetime Warranty.

Fitting Clamp Material
303 Stainless Steel

-10AN Fittings Material
6061 Aluminum

Overall Size
1.30" x 2.44" x 1.51" (assembled)

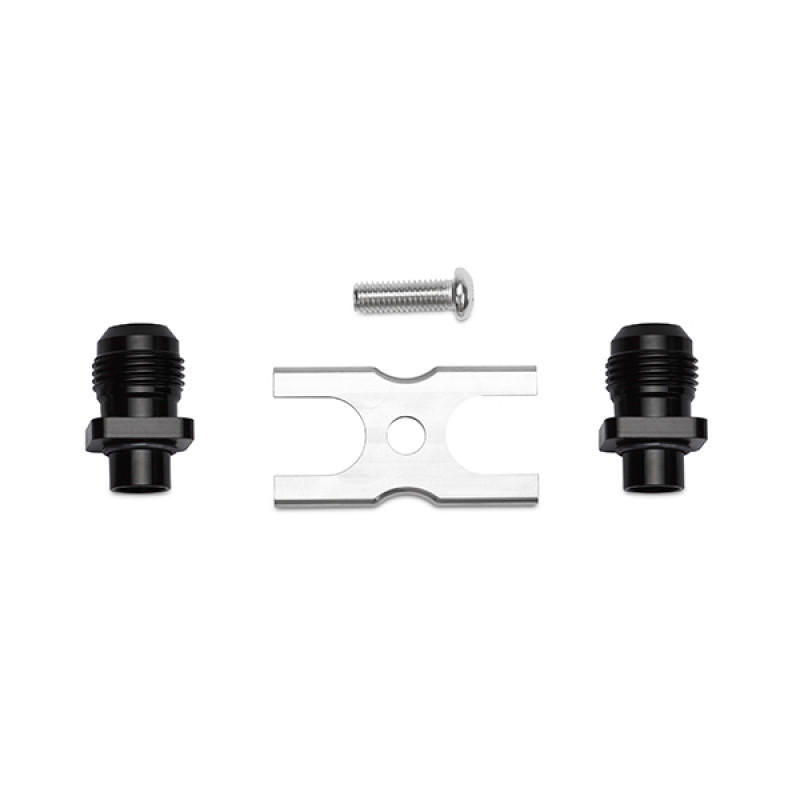

Purchase Includes
(1) Stainless Steel Fitting Clamp
(2) -10AN Fittings
(2) BMW Oil O-rings
(1) M8 x 1.25 x 25mm Button-Head Bolt
Mishimoto Lifetime Warranty

Note
This kit works with vehicles which have stock oil cooler housings.

Caution
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, click here to contact us.

Installation Torque Specs
10 ft/lbs for Oil Line Fitting Kit bolt

Inlet
-10AN

Outlet
-10AN

Engine Codes
S54
N54
N55

Chassis Codes
E36
E46
E82
E90
E92
E93

Fits
92–98 BMW E36 w/ 6 cyl. engine (Euro oil filter housing)
01–06 BMW E46 M3
06–11 BMW E90 335i/335xi/335i/xDrive (Sedans)
07–12 BMW E92 335i/335is/335xi/335i/xDrive (Coupes)
07–12 BMW E93 335i Convertible
08+ E82 BMW 135i 1M Coupe
