Product Description

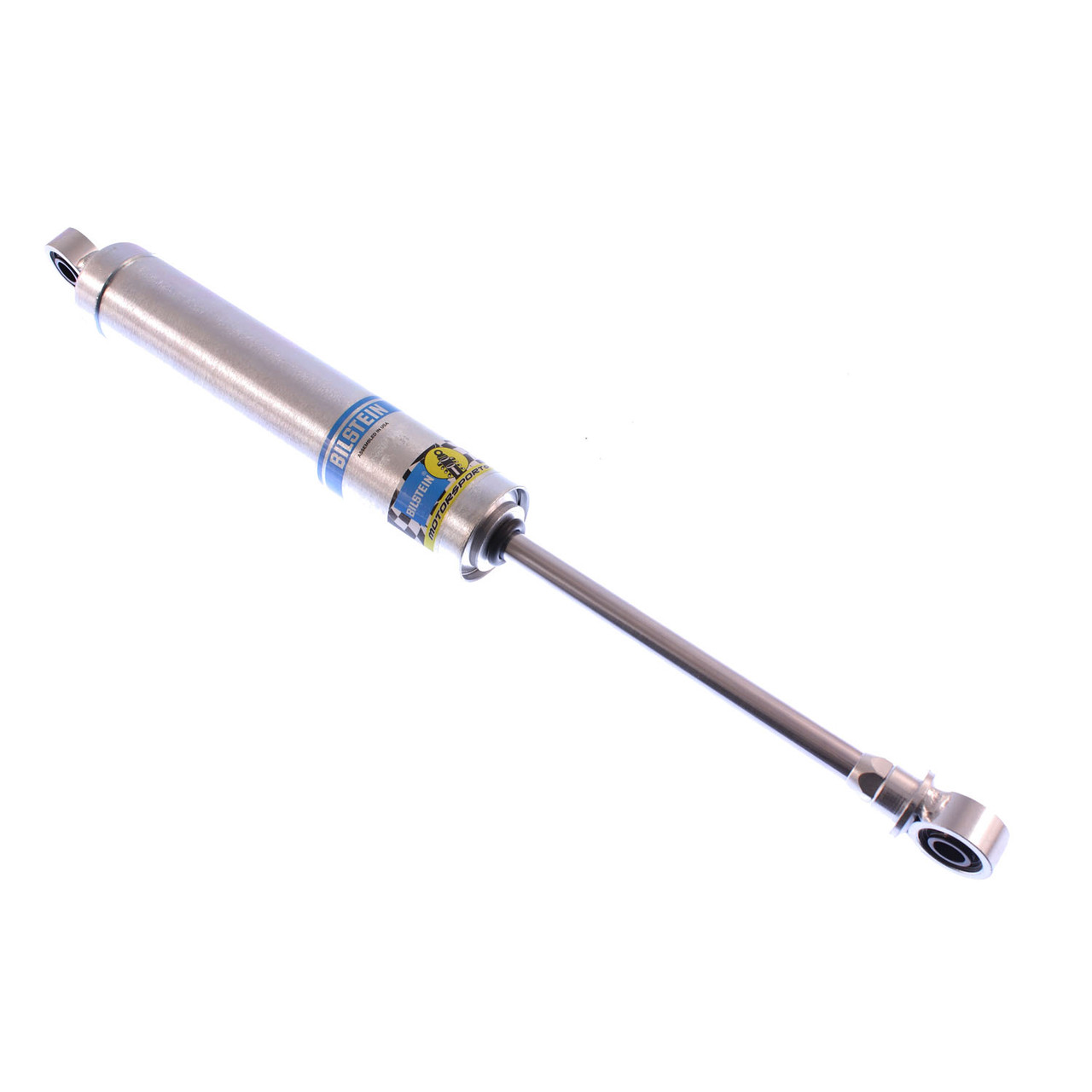

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Collapsed Length (IN)14.88
Extended Length (IN)23.52
Collapsed Length (MM)378.0
Extended Length (MM)597.5
Compression @0.26m/s335
Rebound @0.26m/s430
FinishZinc Plated
Body DesignSmooth Body (Non-Coilover)
Body Diameter46mm
Spring HardwareB4-BOA-0000117
Piston TypeDigressive
Base ValveNo
Service TypeFactory Rebuildable
Valving Sub-TypeN/A
Valving Type50/50 valving
Adjustable DampingNon-Adjustable
