Product Description

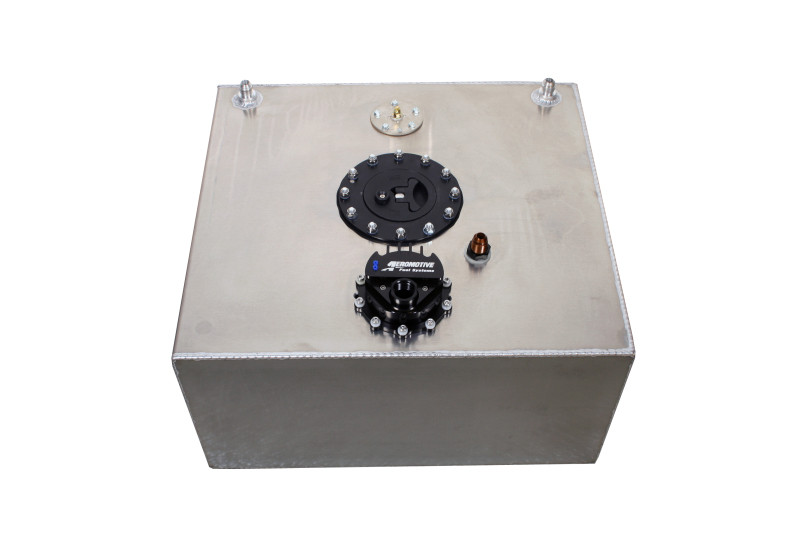

15-gallon Racing Fuel Cell with 5.0 Brushless Gear Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent. This is the same fuel cell design used in the Ford Cobra Jet, Chevy COPO Camaro and many of the MOPAR Drag Pack cars.Baffled design keeps fuel at the pump inlet
Fluted pickup with integrated 100-m prefilter
Fuel Cell Dimensions: 20?w x 18?l x 10?h
Ground shaking performance and more:
Fuel injected engines:
up to 3400 FWHP naturally aspirated
up to 2600 FWHP forced air induction
Carbureted engines:
Up to 3600 FWHP naturally aspirated
Up to 2700 FWHP forced air induction
E85 Compatible, reduce max FWHP by 30%
Lighter than the traditional Pro-Series pump.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
ORB-10 outlet port.
Requires straight 12-VDC to 16-VDC power supply.
Not compatible with pulse modulated systems or fuel pump speed controllers.
EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts
